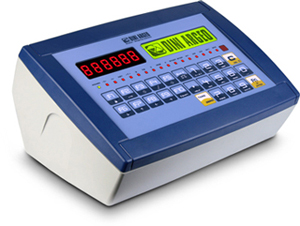

3590e Indicator

Double click on above image to view full picture

Zoom Out
Zoom In

3590EXP Enterprise Industrial Indicator

Contact us

Be the first to review this product

Dini Argeo

Availability: In stock

Ex. VAT: £495.00 In. VAT: £594.00

Quick Overview

High performance digital weight indicator, with programmable inputs and outputs, 3 serial ports, transmission protocols for data communication, completely configurable printouts, integrated alibi memory, graphic display and port for connection to barcode/badge reader. The wide range of connectable accessories and printers guarantees the maximum interfaceability and versatility. CE-M approvable (OIML R-76 / EN 45501).

* Required Fields

Ex. VAT: £495.00 In. VAT: £594.00

Add to Cart

Main Features:

•
25-key alphanumerical waterproof keyboard.
Highly efficient red led display with 6 digits 15mm high.
• Backlit LCD graphic 25x100mm display.
• Synoptic bar graph with 16 bright LEDs showing the active functions.
• Easy to clean ABS waterproof IP65 enclosure; resistant to harsh and corrosive environments.
• Dimensions: 278x125x186 mm.
• Suitable for use on the table, column or wall.
• Real time clock and permanent data storage.
• Fitted alibi memory, integrated on the motherboard.


Functions available with DINITOOLS utility



  • Configuration, calibration, data entry and print formatting.

  • Saving and filing of all the information on PC.

  • Complete retrieval of the data saved for quick substitution.

  • Instrument calibration with numeric values.


• Easy Excel data entry: the indicator communicates directly with the active Windows application (electronic spreadsheet, word processor, database).
• Selection of the programme language directly in the set-up.
• 24-bit A/D converter, 4 channels, up to 3200 conv./sec. and up to 8 signal linearisation points.
• 4 independent analogue channels (up to 2 in the E-AF03 version, 1 in the E-AF09 version) for reading of the weight.
• Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm) and with the main digital load cells available on the market (mod. E-AF03).
• Up to 10.000e OIML or 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
• Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
• 110-240 Vac power supply; built-in rechargeable battery for use in prolonged absence of the power mains.
• Connectable to printers and labellers with the command drivers.
• Available in "P" version, fitted with attached printer as standard.


I/O Section Features:


• Two RS232 serial ports, for connection to printer, radio module, PC or PLC, badge reader or remote scale, with management of the CTS signal.
• One RS232/RS485 serial port, for connection to printer, PC, PLC, or digital load cells.
• Fitted keyboard emulation input, for barcode/badge readers or external PC keyboard, through cable with mini DIN connector (optional).
• 4 optoisolated outputs.
• 2 optoisolated inputs.
• Infrared ray input for optional remote control.






Communication RS232, RS485, WiFi, Ethernet, Bluetooth, USB
ATEX Zone N/A
Display Backlit LCD graphic 25x100mm display.
Power Requirements 110/230vac + Internal Rechargeable Battery
IP Rating IP65
Manufacturer Dini Argeo
