Dini Argeo

PLX1K-1 Load Cell Kit

Ideal for creating platforms with 4 load cells of various sizes and capacities.

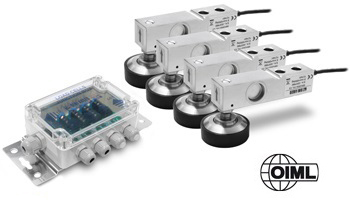

The kit is made up of 4 1000 Ohm IP68 stainless steel load cells, OIML approved, together with adjustable stainless steel resting feet and an equalisation box.

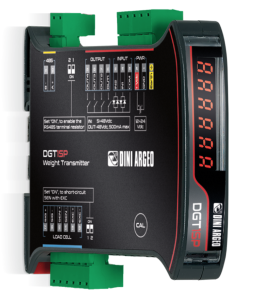

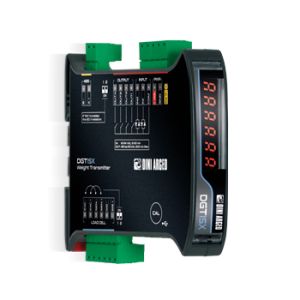

Add a weight indicator from the options below, our load cell kits can be used with any type of weighing scale indicator or load cell amplifier.

Starting at £577.00 £692.40

Grouped product items
ModelCable LengthOverloadRRPPriceQty
PLX1K405C3-1 3500mm 150% £740.00
Our Price £577.00 £692.40 List Price £888.00
PLX1K410C3-1 3500mm 150% £740.00
Our Price £577.00 £692.40 List Price £888.00
PLX1K420C3-1 3500mm 150% £740.00
Our Price £577.00 £692.40 List Price £888.00

Load Cell Features
C3 precision class
Made in stainless steel with laser welding
IP68 protection against dust and water.
Capacities from 500 to 2000 kg (for each cell)
Minimum load cell verification interval: Vmin = EMax / 10.000
Maximum number of verification intervals: nLC = 3000
Combined error: 0,017% of Full Scale Output (F.S.)
Full Scale Output: 2mV/V +/- 0.5%
Temperature effect on zero: 0,002% /°C
Temperature effect on full scale output: 0,002% /°C
Compensated Temperature Range: -10°C/+50°C
Operating Temperature Range: -20°C/+60°C
Creep error after 30 minutes: 0,02% F.S.
Maximum tolerated excitation voltage: 15 Vdc
Input Resistance: 1100 ± 20 Ohm
Output Resistance: 1000 ± 20 Ohm
Insulation Resistance: >5000 MOhm
Safe Overload: 150% F.S.
Ultimate Overload: 300% F.S.
6-wire shielded cable, 5m long, 5 mm diameter

More Information
Cable Length3500mm
Safe Overload150%
IP RatingIP67
