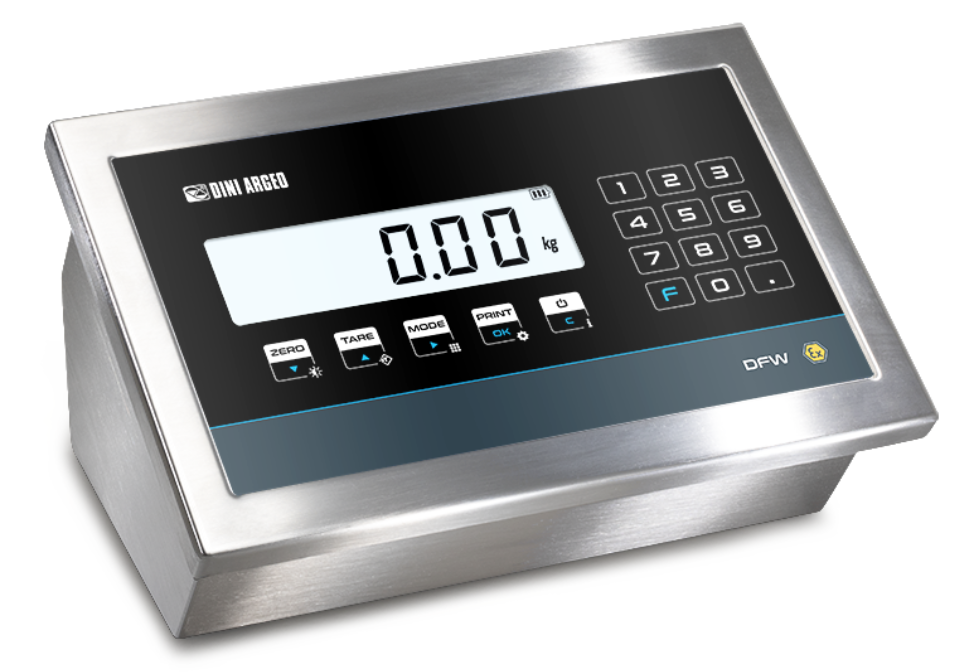

DFW-IECEX3GD
Ex Indicator for Zone 2/22. Stainless steel enclosure, IP68 protection, 17-key keypad, backlit LCD display and internal power supply. ATEX/IECEX Marking: II 3G Ex nR IIC T6 Gc X (0°C<= Ta <=50°C) for gas and II 3D Ex tc IIIC T85°C Dc IP65 X (0°C<= Ta <=50°C) for dust.Provided with safety instructions and the ATEX EU declaration of conformity (EN, DE, FR, ES and IT).
£1,150.00 £1,380.00
17-key high thickness waterproof keyboard.
LCD display with backlight as standard with 6 25 mm digits.
Satin IP68 stainless steel enclosure.
Suitable for use on the table.
Dimensions: 280x143x185mm.
Up to 10.000e or 3 x 3000e @ 0,3 µV/d OIML approved version and CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use.
Up to 8 signal linearisation points with DINITOOLS (3 from the keyboard).
Internal resolution up to 3.000.000 points.
24-bit sigma-delta A/D converter, up to 200 conv./sec. with automatic frequency selection.
Board protection case inside the box.
Calibration and digital Set-Up from the keyboard.
Instrument management and configuration from PC with DINITOOLS.
4 channels (for single weighing system).
Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W (optional power cable).
Connection with up to 8 load cells of 350 Ohm.
| Communication | RS232 |
|---|---|
| ATEX Zone | Zone 21, Zone 22 |
| Display | LCD display with backlight as standard with 6 25 mm digits. |
| Power Requirements | 110-230v Mains Input |
| IP Rating | IP68 |
