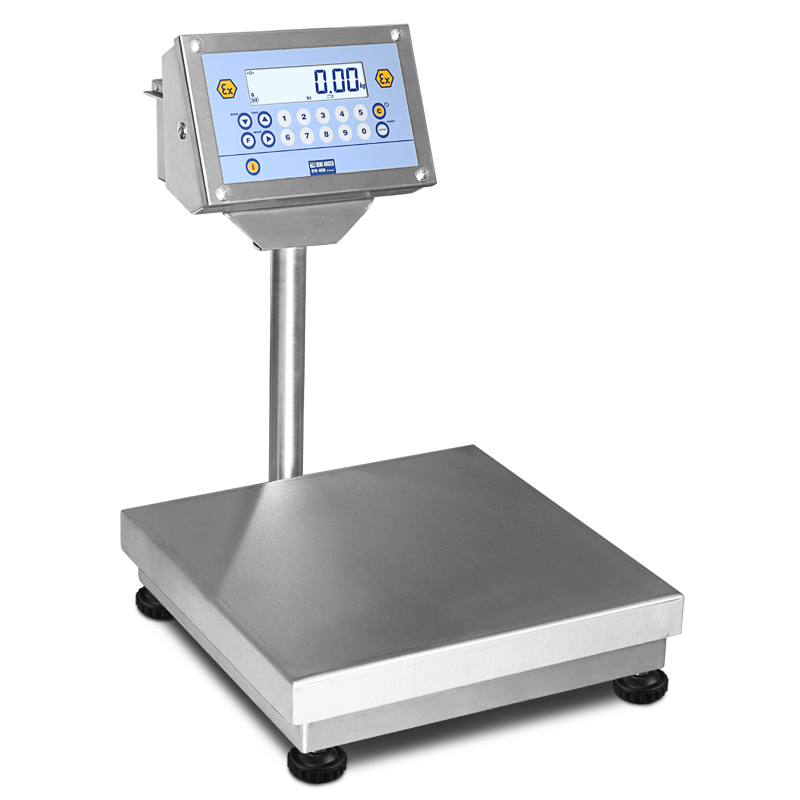

EPQI3GD30B - 400 x 400mm - 30kg x 5g

• IP68 Weight indicator for ATEX areas with protection methods according to:
  ATEX II 3G Ex nR IIC T6 Gc X for gases.
  ATEX II 3D Ex tc IIIC T130°C Dc IP68 X for dust.
• EC-Type-Examination certificate according to Annex III (94/9/EC directive). CE-M approvable (OIML R-76 / EN 45501).
• Waterproof 17-key numerical and functional keyboard.
• Backlight LCD display with 6 25-mm high contrast digits, clearly visible even in poor lighting conditions and with low temperatures.
• Up to 10.000e or multirange 3 x 3000e @ 0,3 µV/d in CE-M approved version for legal for trade use.
• Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
• A/D 24-bit sigma-delta conversion, up to 200 conv./sec. autoselect.
• Power supply through external battery pack with 100h operating time. It's possible to buy another battery pack for continuous use (24/7).
• Charger included in the supply

Platform Features

• Approved “single point” STAINLESS STEEL load cell according to OIML R60 standards with protection against dust and water splashes according to IP67 standards.
• ATEX approved load cell with ATEX protection:
  ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga.
  ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65
• Structure, enclosure and loading plate made in AISI304 stainless steel.
• Adjustable levelling feet with plastic over shoe.
• Supplied with support column, height:
  - 500 mm in the "Q" models;
  - 700 mm in the "X" and "E" models.
