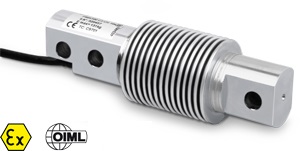

FXC10-1 Bending Beam Load Cells

• C3 precision class
• Stainless steel
• IP68 protection
• Max. capacity: 10kg
• Shielded connection cable
• OIML and test certificates available upon request

• Minimum load cell verification interval: Vmin = EMax / 10.000
• Maximum number of verification intervals: nLC= 3000
• Full Scale Output: 2mV/V ± 1%
• Combined error: 0,017% of Full Scale Output (F.S.)
• Non-Repeatability: 0,015% F.S.
• Temperature effect on zero: ± 0,0014% /°C
• Temperature effect on full scale output: ± 0,0014% /°C
• Compensated Temperature Range: –10°C/+40°C
• Operating Temperature Range: –20°C/+60°C
• Creep error after 30 minutes ± 0,025% F.S.
• Maximum tolerated excitation voltage: 15 VDC
• Input Resistance: 385 ± 20 Ohm
• Output Resistance: 350 ± 5 Ohm
• Insulation Resistance: > 5000 MOhm
• Safe Overload: 150% F.S.
• Ultimate Overload: 200% F.S.
• Nominal displacement: < 0,4 mm

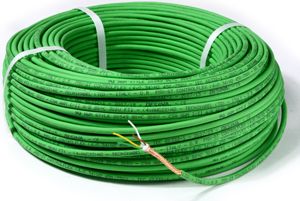

• 4-wire shielded cable, 3m long, 4mm diameter.

ATEX Version:

The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:

• ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
• ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.

The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).

IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
