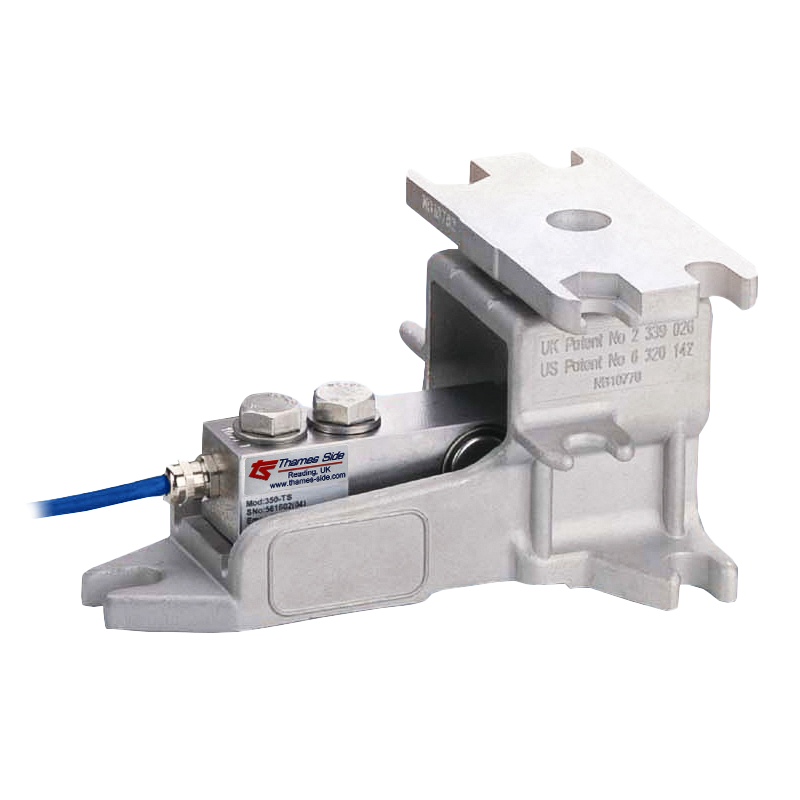

LEVERMOUNT-5T Mounting Kit for T85 Load Cells from 3000 to 5000kg
FOR PROCESS WEIGHING APPLICATIONSThe LeverMount® is a unique, well-established mounting kit that makes installation much simpler, safer and more cost-effective than traditional assemblies.Its innovative design allows for fast load cell installation without any jacking tools or dummy (false) load cells – even with a loaded tank/hopper.The LEVERMOUNT-5T model is designed for T85 load cells from 3000kg to 5000kg - standard version.The mounting accessory is available optionally with a self-centering ball-and-cup load introduction.
£545.00 £654.00
- Cast, grade 316 stainless steel mount (3 sizes)
- Simple, 2-part casting using the transit bolts for fixing the load cell to the mount
- Fast load cell installation/removal without jacking or dummy/false cells, while vessel is full
- Load cell acts as a lever to raise/lower the vessel under load
- Substantial clearance below the load cell
- Stable, shim-free 3 point mounting
- Version for static applications and dynamic applications (e.g. floor scales)
- Top plate movement in lateral and rotational axes
- Configurable for radial, tangential and offset mounting
- Top plate movement in lateral and rotational axes
- Substantial anti-lift resistance (more than 50% of the maximum rated load)
- Safer than traditional mounts. Simple, low cost installation with no specialist tooling required
- Tolerant of steelwork misalignment without errors in output signal
- Load cell can easily be removed under load, in situ
- Allows for large amount of vessel expansion/contraction
| Class | GP |
|---|---|
| Max (kg) | 5000kg |
| ATEX Option | No |
| IP Rating | No Rating |
