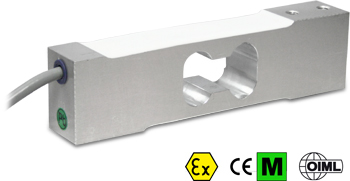

SPG Series Single Point Load Cells, C6 Class
Load cells for off centre loads, suitable for building CE-M approved scales with a single load cell with maximum dimensions of 450x450mm.
Starting at £135.00 £162.00
- C3 precision class
- Off center load compensated
- Aluminium alloy construction
- IP67 protection
- Max. capacities from 7 to 36 kg
- For platforms with dimensions up to 600 x 600 mm
- Shielded connection cable
- OIML and test certificates available upon request
- C6 precision class
- Off center load compensated
- Aluminium alloy construction
- IP67 protection
- Max. capacity: 50kg
- For platforms with dimensions up to 600 x 600 mm
- Shielded connection cable
- OIML and test certificates available upon request
The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
- ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
- ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
| Cable Length | 3m |
|---|---|
| IP Rating | IP67 |
