TPWIM-PRO-EX2GD - 1000 / 2000kg x 0.5 / 1kg - EC Approved
1000 / 200Kg x 0.5 / 1Kg - EC Approved

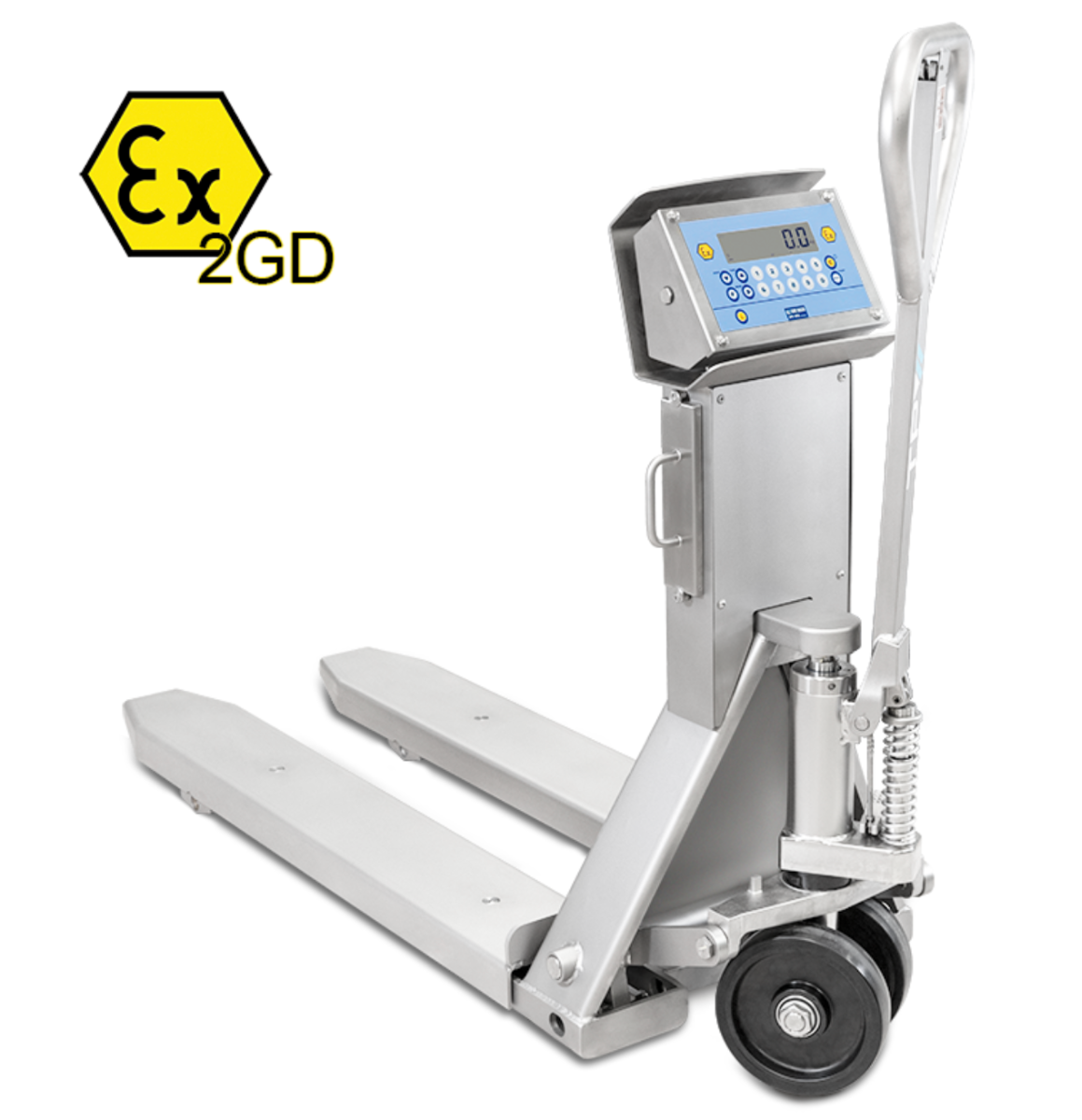

TPWIM-PRO-EX2GD Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONES 1 and 21 & 2 and 22) in accordance with Ex II 2GD IIB T4 T197°C X protection.
The weight detection made with four ATEX certified IP68 stainless steel load cells guarantees the precision in all work conditions.
Our Price £5,017.00 £6,020.40 List Price £8,616.00
Options
DFWBPAL Battery charger for DFWBP76ATEXD
Our Price £125.00 £150.00 List Price £189.60
DFWBP76ATEXD - Zone 1/21 ATEX Battery Pack
Our Price £350.00 £420.00 List Price £538.80
• Bearing structure entirely in extra thick STAINLESS steel.
• Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 16 numerical/functional keys.
• Calibration and Set-Up parameters configurable from keyboard or from PC.
• Low battery warning. Programmable auto switch-off.
• Supplied with 230Vac 50 Hz battery charger to be recharged in a safe area. Optional spare available
| ATEX Zone | Zone 1, Zone 2, Zone 21, Zone 22 |
|---|---|
| Maximum Capacity | 1000kg, 2000kg |
| Division / Increment | 0.5kg, 1kg |
| EC Approved | Yes |
| Fork Length | 1170mm |
| Fork Width: | 150mm |
| Width Over Forks | 550mm |
| Steering Wheel | Rubber Coating |
| Power Requirements | Rechargeable Battery |
| Load Cells | Four IP68 STAINLESS steel, Atex certified, shear-beam load cells. |
| IP Rating | IP68 |
| Battery Life | Approx 40-hour |
| Loading Wheel | Polyurethane Coating |
| Estimated Ship Time | 3 Weeks |
