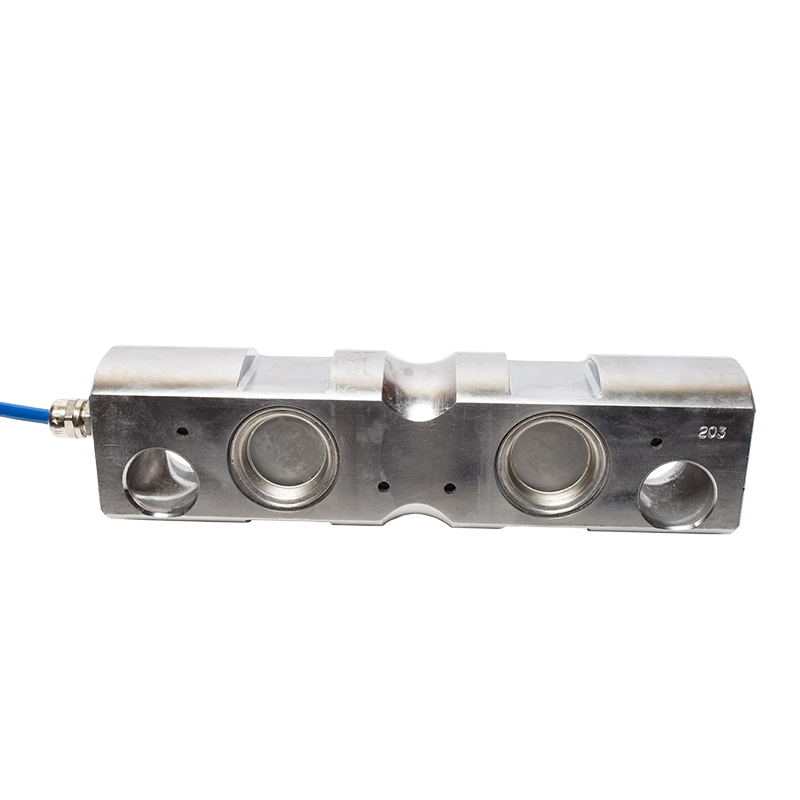

VC3500-20T Double Shear Beam Load Cell
Vessel weighing problems solved simply and cost effectively. The VC3500 double shear beam load cell is designed particularly for large silos and tanks and it incorporates a high resistance to lift-off.The VC3500 load cell is also available with optional ATEX or IECEx certification and can be supplied as a special version with high temperature capability (for operation up to 150°C continuously).
£895.00 £1,074.00
The VC3500 family of load cells is available in capacities from 2.000 kg to 200.000 kg. They are especially suitable for high capacity vessel weighing and feature a combined error specification of < ± 0.03%.
The critical sensor element is a fully welded double ended shear beam, manufactured from high tensile 17-4 PH stainless steel that is heat treated to give a high ultimate tensile strength. This heat treatment provides an extremely stable platform for the strain gauges, resulting in excellent accuracy and repeatability. In common with all Thames Side load cells, the strain gauged element is temperature compensated to ensure accuracy is maintained over a wide temperature range.
Stainless steel diaphragms are welded in position to provide total environmental sealing.
Due to the unique design of the VC3500, transverse and non-axial misalignment errors are minimised.
- Stainless steel load cell, fully welded and hermetically sealed to IP68 and IP69K
- High integral resistance to lift-off as standard
- Resistant to off-axis loading
- Low profile design
- Durable Polyurethane cable with high resistance to chemicals, UV radiation and cuts
- Allows for vessel expansion and contraction
- Options of ATEX or IECEx approval, Parylene coating and high temperature version on request
- Optional load cell output of 4-20mA on request
Load Cell Capacities: 2, 5, 7.5, 10, 15, 20, 30, (50, 75, 100, 150, 200 t on request)
Full Load Output: 2.0 mV/V ± 0.25%
Excitation - Recommended: 5 - 15 V
Excitation - Maximum: 18 V
Safe Service Load: 150 %*
Ultimate Overload: 300 %*
Combined Error: < ± 0.03 %*
Repeatability: < ± 0.015 %*
Output at Zero Load: < ± 2.0 %*
Input Resistance: 785 Ω ± 20
Output Resistance: 705 Ω ± 5
Operational Temperature Range: -50 to +80 ˚C
Compensated Temperature Range: -10 to +40 ˚C
Temperature Coefficient on Zero: < ± 0.002 %* / ˚C
Temperature Coefficient on Span: < ± 0.0012 %* / ˚C
Environmental Protection: IP68 and IP69K
Cable: 20 m lenght, 6 mm diameter, polyurethane material
Insulation: >5000 MΩ @ 100V
*All percentages are related to Full Rated Load
| Class | GP |
|---|---|
| Max (kg) | 20t |
| ATEX Option | Optional |
| Cable Length | 20m |
| IP Rating | IP69K |
