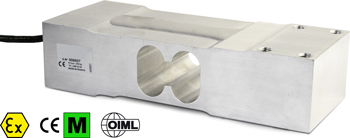

SPBC Series Single Point Load Cells
Load cells for off centre loads, suitable for building CE-M approved scales with a single load cell with maximum dimensions of 700 x 700 mm.
Starting at £220.00 £264.00
- C3 precision class
- Off center load compensated
- Aluminium alloy construction
- IP65 protection
- Max. capacities from 100 to 630 kg
- For platforms with dimensions up to 700 x 700 mm
- Shielded connection cable
- OIML and test certificates available upon request
- Minimum load cell verification interval: Vmin = EMax / 10.000
- Maximum number of verification intervals: nLC = 3000
- Full Scale Output: 2mV/V +/- 10%
- Combined error: 0,017% of Full Scale Output (F.S.)
- Temperature effect on zero: 0,0014% /°C
- Temperature effect on full scale output: 0,0014% /°C
- Compensated Temperature Range: -10°C/+40°C
- Operating Temperature Range: -20°C/+60°C
- Creep error after 30 minutes: 0,025% F.S.
- Maximum tolerated excitation voltage: 15 VDC
- Input Resistance: 410 ± 20 Ohm
- Output Resistance: 350 ± 5 Ohm
- Zero Balance: +/-10% F.S.
- Insulation Resistance: >1000 MOhm
- Safe Overload: 150% F.S.
- Ultimate Overload: 200% F.S.
- Nominal displacement: < 1mm
- SPBC 6-wire shielded cable, 3m long, 5mm diameter
The CCATEX certificate makes the load cell suitable for use in hazardous areas with protection methods according to:
- ATEX II 1G Ex ia IIC T6 (Ta -20÷+40°C) TX (Ta -20÷+65°C) Ga
- ATEX II 1D Ex ta IIIC TX°C (Ta -20÷+40°C) TX°C (Ta -20÷+65°C) Da IP65.
The certificate includes the manual and the ATEX CE conformity declaration (available in EN, DE, FR, and IT).
IMPORTANT: the certificate refers to the single load cell. For systems with more load cells, it is necessary to order one certificate for each load cell.
| Cable Length | 3m |
|---|---|
| IP Rating | IP65 |
