TPWIM-PRO-EX3GDM - 1000 / 2000kg x 0.5 / 1kg - Approved
Approved Pallet Scale - 1000Kg x 0.5Kg / 2000Kg x 1Kg Dual Range

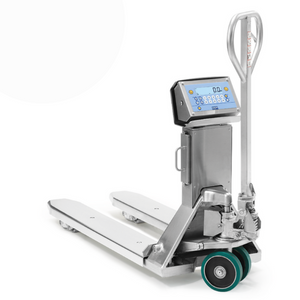

TPWIM-PRO-EX3GDM Pallet truck scales, with built-in electronic weighing, suitable for harsh working conditions and dangerous areas classified as hazardous (ZONE 2, 22) in accordance with Ex II 3GD IIC T6 T130°C X protection.
The weight detection made with four ATEX certified IP68 stainless steel load cells guarantees the precision in all work conditions.
Our Price £4,774.00 £5,728.80 List Price £8,184.00
Options
• Bearing structure entirely in extra thick STAINLESS steel.
• Weight indicator with waterproof IP68 STAINLESS STEEL case, easy to clean and resistant to harsh and corrosive environments; large high contrast 25mm LCD display, easily visible also in poor lighting conditions and waterproof membrane keypad, with 16 numerical/functional keys.
• Calibration and Set-Up parameters configurable from keyboard or from PC.
• Low battery warning. Programmable auto switch-off.
• Equipped with 230Vac 50 Hz battery charger to be recharged in a safe area.
| ATEX Zone | Zone 2, Zone 22 |
|---|---|
| Maximum Capacity | 1000kg, 2000kg |
| Division / Increment | 0.5kg, 1kg |
| EC Approved | Yes |
| Fork Length | 1170 mm |
| Fork Width: | 150 mm |
| Width Over Forks | 550 mm |
| Steering Wheel | Polyurethane Coating |
| Power Requirements | Rechargeable Battery |
| Load Cells | Four IP68 STAINLESS steel, Atex certified, shear-beam load cells. |
| IP Rating | IP68 |
| Battery Life | Approx 40-hour |
| Loading Wheel | Polyurethane Coating |
| Estimated Ship Time | 3 Weeks |
