PLT Load Cell Kit

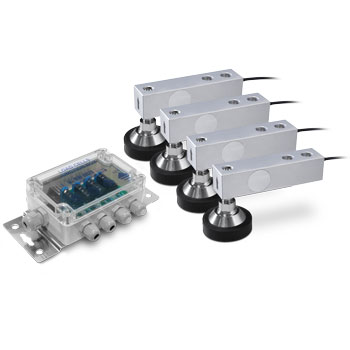

Optimal for constructing platforms that incorporate four load cells featuring diverse sizes and capacities, this kit encompasses four 350 Ohm IP67 nickel-plated load cells. These load cells have garnered approvals from both OIML and NTEP, attesting to their adherence to accuracy standards. Additionally, the kit is furnished with adjustable resting feet to ensure stability and an equalization box for calibration purposes.
Contact us for calibration with optional weight indicators listed below.
Starting at £417.00 £500.40
Options
- Minimum load cell verification interval Vmin = EMax / 10.000
- Maximum number of verification intervals nLC = 3000
- Combined error 0,017% of Full Scale Output (F.S.)
- Nonlinearity ± 0.02% FS
- Hysteresis ± 0.02% FS
- Repeatability ± 0.01% FS
- Full Scale Output 2mV/V ± 0.5%
- Zero balance ± 1% FS
- Compensated Temperature Range -10°C/+50°C.
- Operating Temperature Range -20°C/+60°C.
- Creep error after 30 minutes <0,02% F.S.
- Maximum tolerated excitation voltage 15 Vdc
- Input Resistance 380 ± 20 Ohm
- Output Resistance 350 ± 5 Ohm
- Insulation Resistance >5000 MOhm
- Safe Overload 150% F.S.
- Ultimate Overload 300% F.S.
- 6-wire shielded cable, 3.5m long, 5 mm diameter
| Cable Length | 3500mm |
|---|---|
| Safe Overload | 150% |
| IP Rating | IP67 |
